AFC Electronic Knitting Machine

Equipped with 4 pcs arc-shaped feeder rail,16pcs auto motor-driven feeders, the movement of which is controlled by computer up or down. This electric loom knitting machine could precisely realize the knitting of intarsia, inverse plating and reduce running course, to improve knitting efficiency. The electronic knitting machine is the latest innovative proprietary technology。

AFC Electronic Knitting Machine Specifications


Gauge

12G/12GV/14G/14GV/16G/18G

Knitwith

52inch(132cm)/80inch(203cm)

Knittingsystem

single carriage(double and three system)

Cam system

5.2-inch smaller carriage

Needlebed

Insert plate model

Selectionsystem

8 segment Pre-selection system

Machinespeed

Maximum speed 1.4 meter/second, knitting speed could bese thigher or lower according to knit structure and yarn strength

Needlebedracking

Maximum L/R movement range 4inch, driven by servo motor

Autostopdevice

Yarn breakage, yarnknot, fabric-rewind needle collision, overload, set knit piece finish, specificline stop, program error

Safetyequipment

The whole machine is equipped with anti-noise and anti-dustcover, infrared ray sensor, emergency stop sensor, power cut off device

Power

Voltage AC220v/AC380v, Frequency 50Hz/60Hz ,Power consumption: 2Kw

Standardconfiguration

Rubbe rroller, comb with needle/wire, two scissor set, auto down roller(80inch)

Optionalconfiguration

Auto down roller(52inch)

Specificconfigurations

Arc-shaped feeder rail with auto motor-driven
feeder/vacuuming system/two sets of tool kit


Gallery of AFC Electronic Knitting Machine

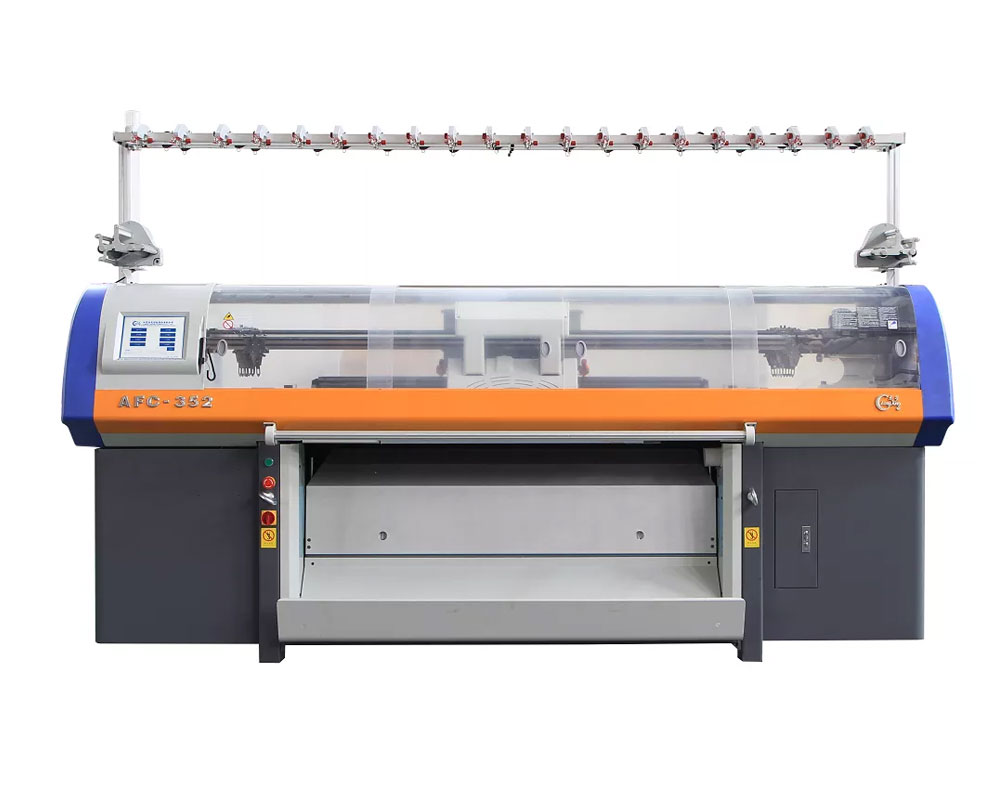

electronic knitting machine
electronic knitting machine

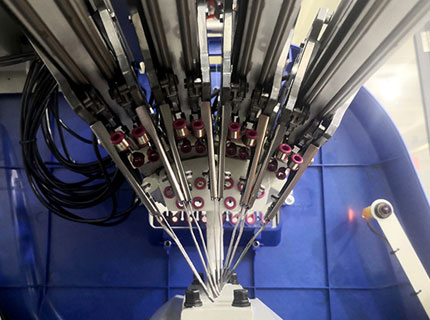

gallery of afc electronic knitting machine
gallery of afc electronic knitting machine

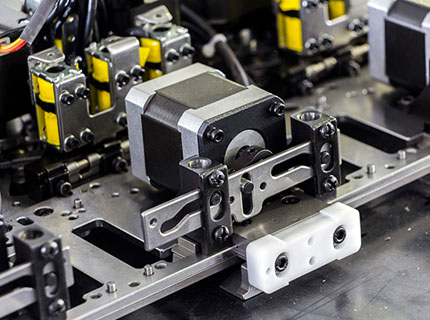

sweater equipment
sweater equipment
Swatches of AFC Electronic Knitting Machine

Swatches of AFC Electronic Knitting Machine

swatches of afc electronic knitting machine
swatches of afc electronic knitting machine 2
swatches of afc electronic knitting machine 4
swatches of afc electronic knitting machine 5
swatches of afc electronic knitting machine 6
