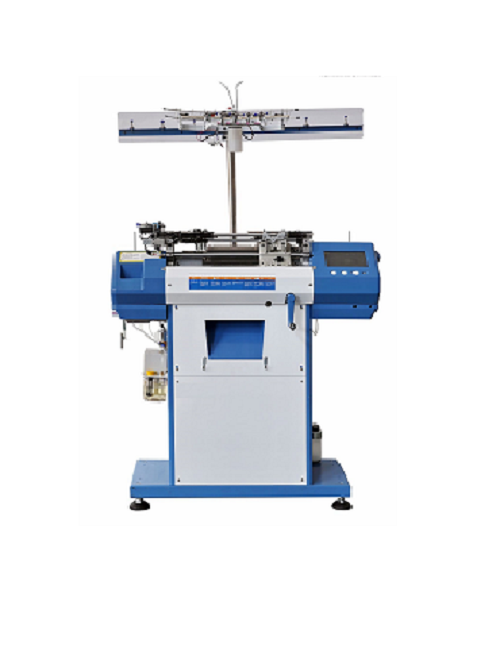

FZ-G13/15

Glove machine is a textile machinery used to produce various types of gloves, such as knitted gloves, sewn gloves, sports gloves, etc. The working principle of the glove machine is to pass the yarn through the eye of the needle and then weave it on the loom. Different types of gloves require different weaving methods and techniques, so glove machines also come in different types and specifications. For example, the computerized fully automatic glove machine control system can automatically knit single-finger, split-finger, insert-finger and fingerless gloves.

1. Non-thread:Through the specially designed carriage,the remaining yarn at the fingertips and between the crotch can be knitted inside the gloves without blowing which not only saves power, but also improves the quality of the gloves


2. Automatic overlock device:it eliminates the traditional manualoverlock process, which not only reduces labor costs.but also improves production efficiency.


3. Smaller volume: Compared with the old model. B-Mac 99 has a 20% reduction in floo space.More machines can be placed in a limited factory space, increasing overall productivity.


4. Smarter:The powerful integrated computer system can store allthe glove specifications A large amount of data can be transferred via the USB memory interface eliminating the need to set it up separately on each machine saving a lot of timeThe 7-inch touch screen operation panel adopts a user-friendly desian conceptwhich makes the operation simpler and the display more concise.


5. More energy saving:Theultra-small and ultra-thin carriage can reduce the load of the machine. realize the extremely fast rotationhigh-speed operation reduce the inertial impact force during high-speed operation,and reduce the power consumption by more than 25%.


6. Reinforced crotch device: it can produce gloves with higher friction resistance between the thumb and the forefingerIt’s more suitableforcut-resistantaloves


7. 2-color &3-color devices: it can make gloves with 2 or 3 colors stripes. By usinc conductive varn at the fingers.the aloves can beused for touch-screen products.


8. Automatic lubrication: it features lubrication to all required parts provides sufficient coverage to all parts of the machine for minimized wear and easier maintenance.


9. Elastic yarn motor controller: step motor controls elastic yarn output intelligently controls the wrist width and ensure the guality of every piece of glove.

规格SPECIFICATIONS
针数 Gauge13G15G
尺码 Size in needlesL3:98 L2:93 L:88 M:83 S:78 XS:73L2:113 L:103 M:93 S:83 XS:73
平均产量Average output9pairs/hour8pairs/hour
集装箱容量Container capacity48 sets/20’FT     96 sets/40’HQ
电源 Power单相.220V,140WSingle phase,220V,140W
供油方式 Lubrication自动供油 Automatic lubrication
编织密度 Stitch density步进电机控制 Step motor controller
控制和显示系统 Control & display system电脑控制,7寸触摸屏显示 Electronic programming, 7-inch touch-screen display
接口 Drive systemUSB储存接口、网络接口 USB memory interface, Network interface
传动系统 Drive system双皮带传动,交流电伺服马达 Doube belt drive, AC servo motor
语言 Language中文/英文/俄语/土耳其语/波斯语(Chinese/English/Russian/Turkish/Persian)
机头 Carriage超小超薄机头设计 Super compact &light weight carriage

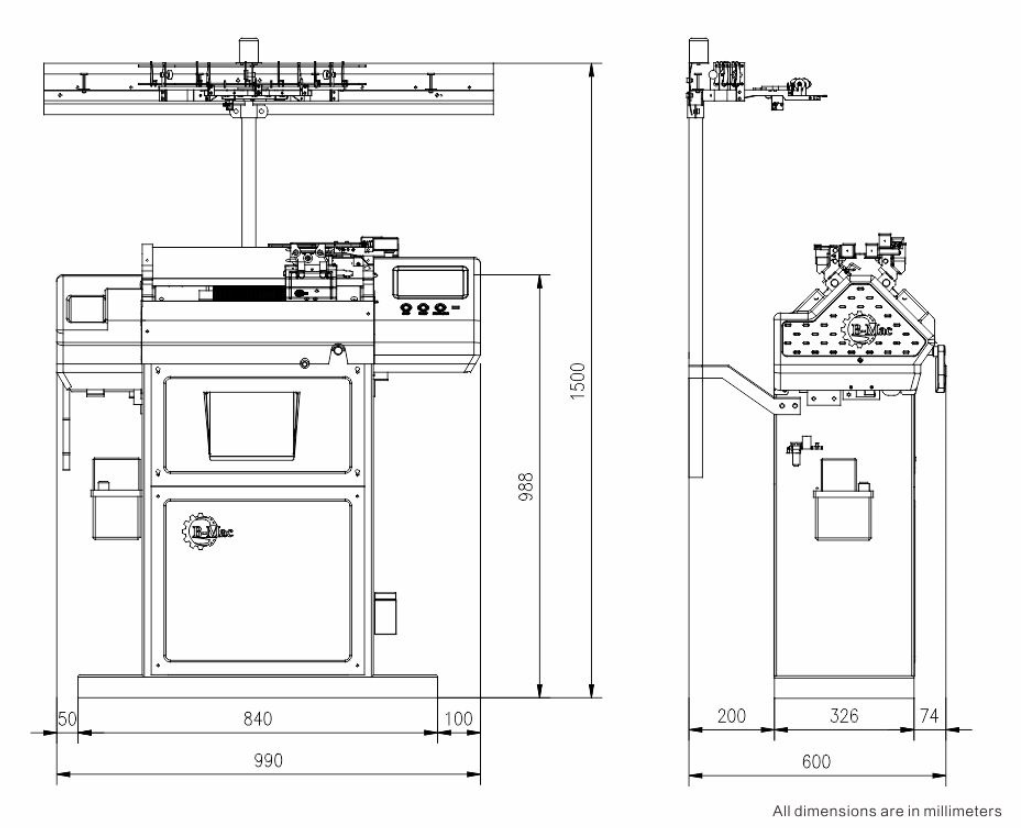

尺寸 Dimension990mm(L)x 600mm(W)x 1,700mm(H)
重量 Weight150KG
选配装置 Options1、一键低叉装置(one touch D3 device)
2、双色装置(2-color device)
3、U2/U3装置(U2/U3 device)
4、U6/菠萝纹装置(U6/Honeycomb line device)
5、半指和包指装置(half finger & mitten glove device)
6、红外光幕安全门装置(infrared area safety sensor)
