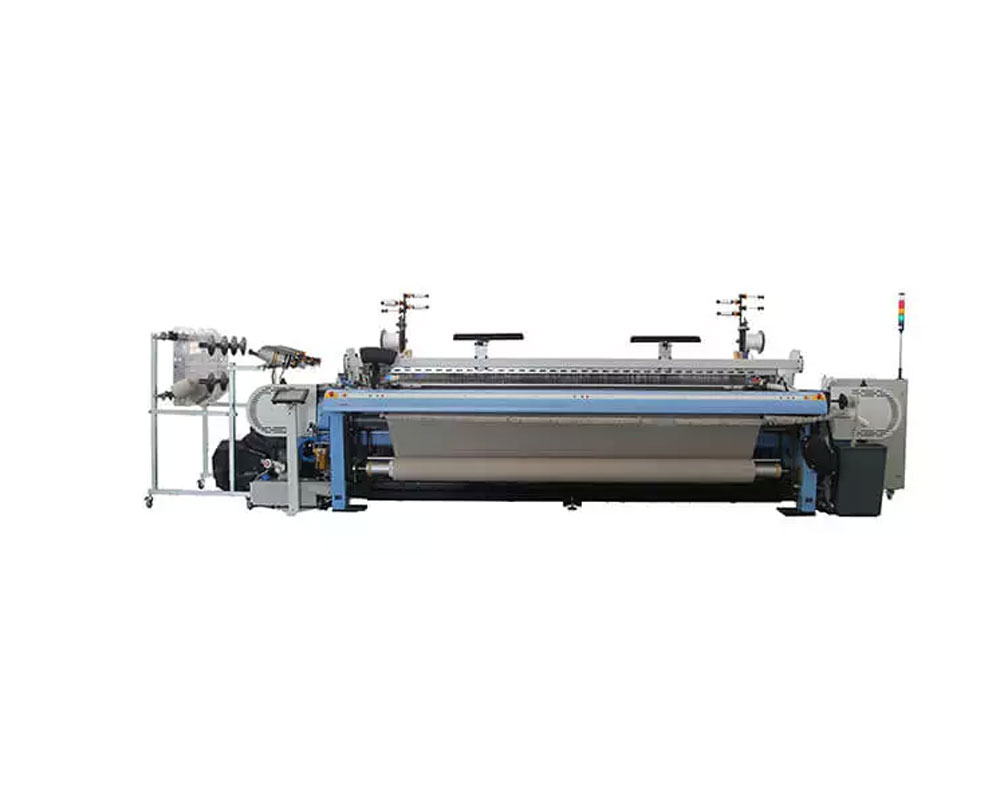

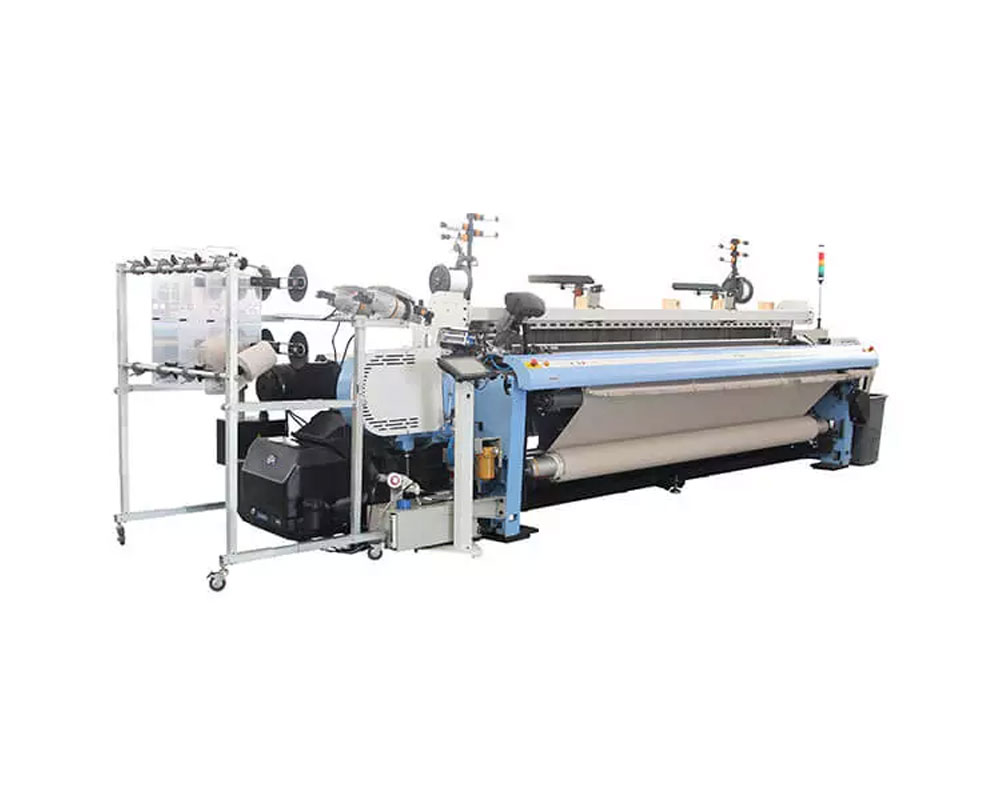

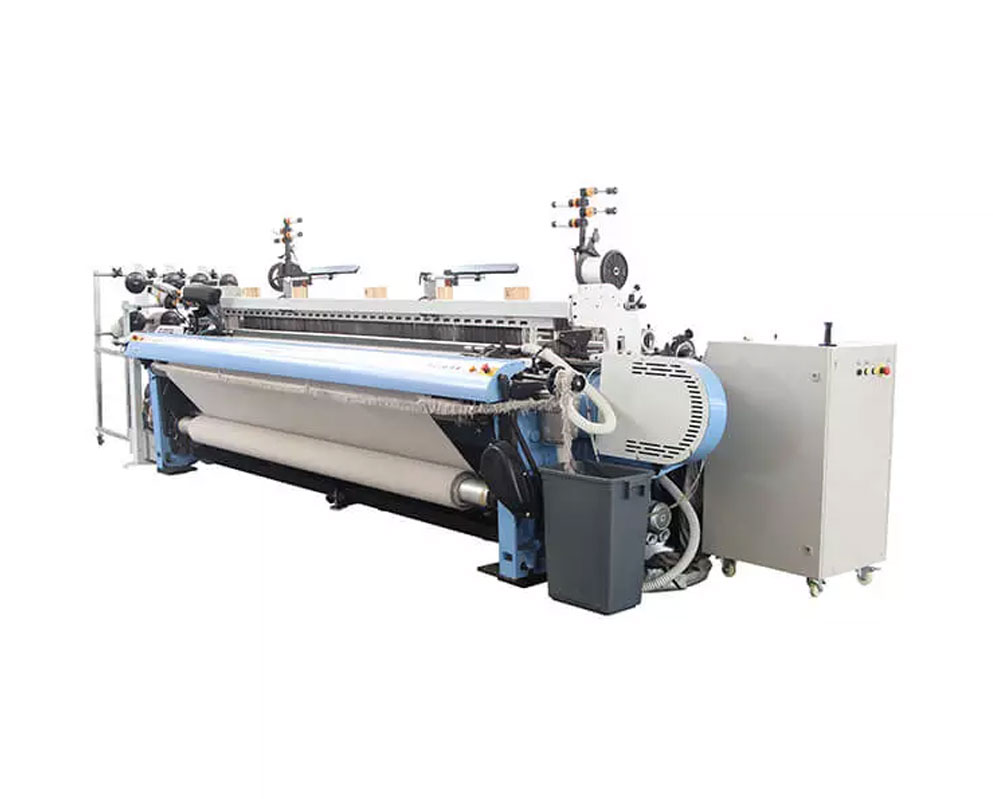

G6500 Rapier Loom

Shedding

） Electronic dobby (max 20 shafts)
Electronic jacquard

Electronic weft selection

4 colours, 8 colours, 12 colours

Weft cutter

Electronic RotoCut weft cutter
Mechanical weft cutter

Independent selvedge

Independent electronic selvedge

Warp beam and flange

Single warp beam
Double warp beam
Flange Ф800、Ф1000

Let-off back roller

Negative single back roller
Negative double back roller
Positive back roller

Reed width

190、200、220、240、260、290、320、340、360 cm

Reed width reduce

0 ～ 80cm

Yarn range

Cotton and synthetic fiber yarn: 500 te（x 1.2 Ne）- 5te（x 120 Ne）
Slub and worsted: 680te（x 1.5 Nm）- 10te（x 100 Nm）
Filament: 10dte（x 9 den）- 1650 dte（x 1485 den）

Fabric weight

40g/m2 ～ 450g/m2

Weft selection

8 colours electronic weft selection

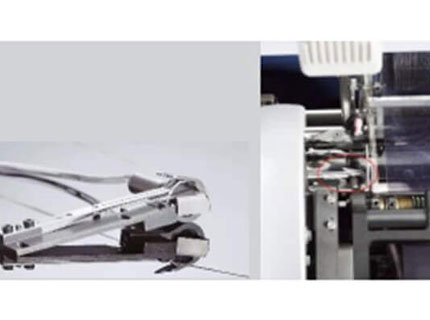

Weft insertion

Spatial linkage, Carbon fiber gripper band, Without gripper band guide hooks

Beating

Conjugated cams on both sides

Shedding

Electronic dobby: max 20 shafts
Electronic jacquard
Electronic selvedge jacquard

Let-off

Electronic let-off
Single warp beam (Reed 190-360), Double warp beam (Reed 290-360)
Flange diameter 0800\01000mm

Take-up

Electronic take-up
Weft density range: 1.9-111 yarns/cm (4.8-282 yarns/inch)

Roll

Maximum roll diameter on machine: 0600mm
Off-machine large roll

Selvedge

Leno selvedge
Independent selvedge
Tuck-in

Lubrication

Oil bath lubrication for main transmission part

Stop motion

Weft yarn: piezoelectric ceramic weft detector
Warp yarn: 6 line/ 8 line electronic contact stop motion

Controlling

Multi-function microcomputer control system with parameters setting/control/production management/self-diagnosis
Automatic weft detection with weaving compensation function (eliminating start mark)

Main motor

5.5Kw (Dobby), 7.5Kw (Jacquard)
