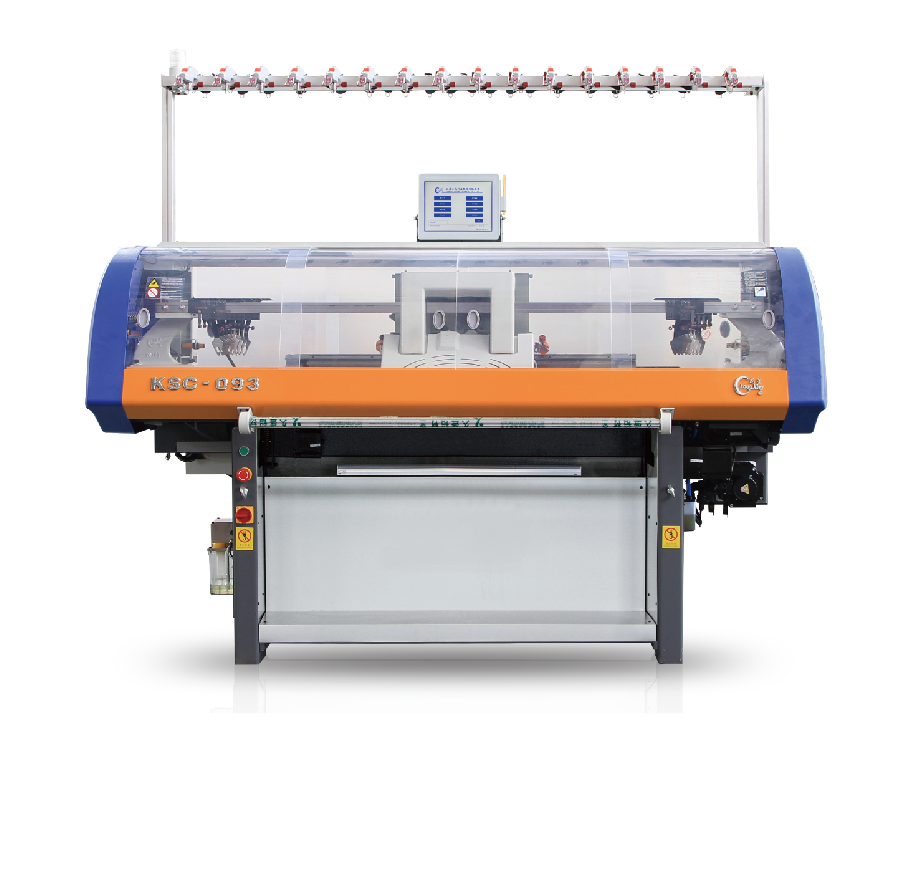

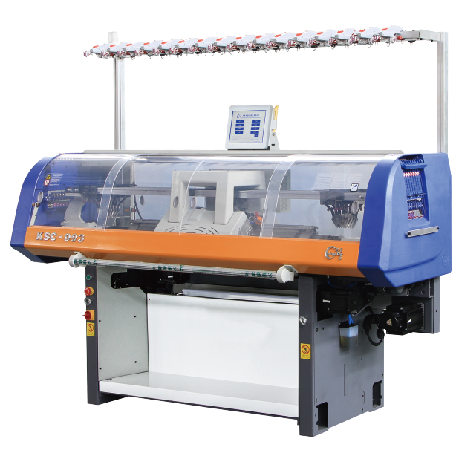

KSC 3D Shoe Upper Knitting Machine

KSC093A/132A/133A/380A/480A-14g: 5.2-inch small carriage 3D shoe upper knitting machine integrates several patented technologies, such as rapid  carriage return technology and dynamic density control technology,which have made shoe upper knitting more faster and efficient. Specially developed high position  taking down roller and sinker with innovative design has extremely met the requirements of  three-dimensional knitting, the special  tight tuck function had made the vamp more harder and firmer. The new infrared probe system has avoided the false alarm caused by the overlapping of yarn feeder in the knitting area. Plenty of new modular program have been added to the software,which greatly enrich shoe upper patterns and increase the efficiency of program making.

LED touch screen for displaying various knitting related parameters.

Reduce the size and weight of the carriage and make the return speed faster.

High-performance servo control technology, the machine's running position is more accurate, and the return is faster.

Adjustable tight tuck device can fully meet the special needs of the loose or tight tuck organization of the shoe upper, independent pushing needle cam control mechanism, shorten the carriage return time.

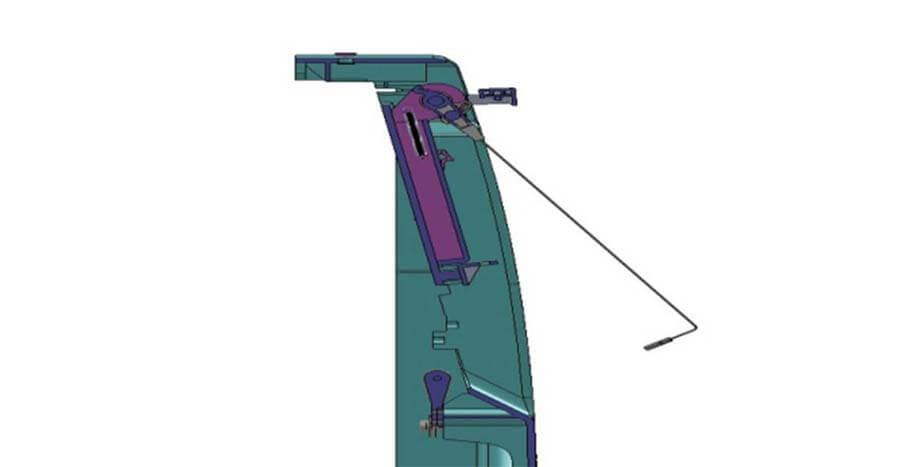

Cross-type sinker design, controlled by the system, the depth of the yarn is suitable for the knitting of thick fabrics and special fabrics such as knee pads and gloves.

Provides consistent and stable yarn feed tension with stepless tension adjustment and non-contact electronic induction alarm.
