This is an innovative design of full jacquard Longxing collar knitting machine, which is driven by servo motor and it has 6 yarn feeders with automatic change, automatic density adjustment and other functions, direct needle selection system combined with structural design of professional collar knitting machine ,it can meet the production demand of high-quality and high -efficiency Jacquard collar knitting machine.
LED touch screen for displaying various knitting related parameters.
With a directly needle selection system, small carriage, makes the machine more effective.
Precision needle and 8-segment needle selection system, and the needle plate is quenched by high frequency to meet the production requirements of high-quality collar fabrics.
The use of the increased thickening fabric winding roller design fully meets the higher requirements of the double-sided organization on the drawing force and enhances the smooth performance of the drawing.
Longxing Collar Knitting machine LX1132F | |
Gauge | 14G/16G/18G |
Width | 52 inches |
System | Single system |
Speed | Maximum speed 1.4m/s |
Racking | Driving by servo motor, 2 inches left and right |
Selection system | 8-segment needle selector, directly needle selection system |
Automatic parking device | Yarn break, yarn knot, rewinding, needle broken, pieces completed, overload, designated parking, program error, etc. |
safety devices | The whole machine covers the cover that reduces noise and dust, the front and rear cover infrared stop sensor, emergency stop, power cut-off device |
Drawing device | Torque motor controlled down roller，segment adjustment |

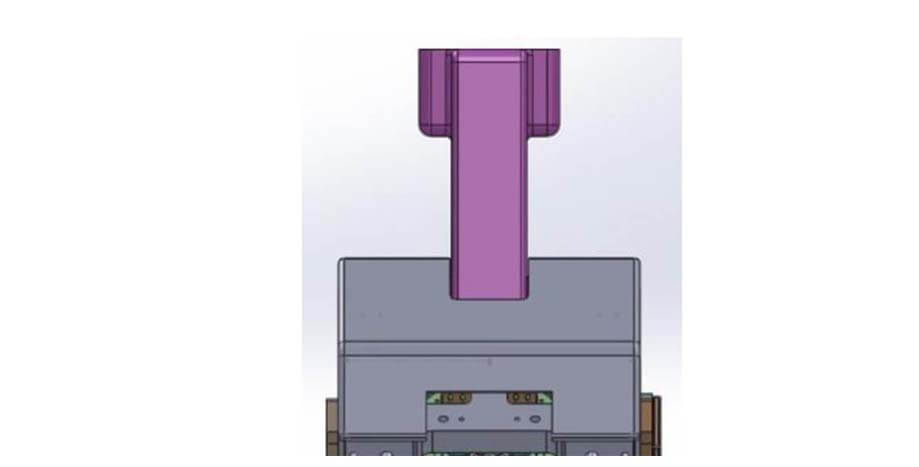

Machine size and weight | Volume: length X width X height 2435X815X1850 (mm) |
Power device | Voltage: AC220V/380V Frequency: 50Hz/60Hz Power: 1.0KW |
