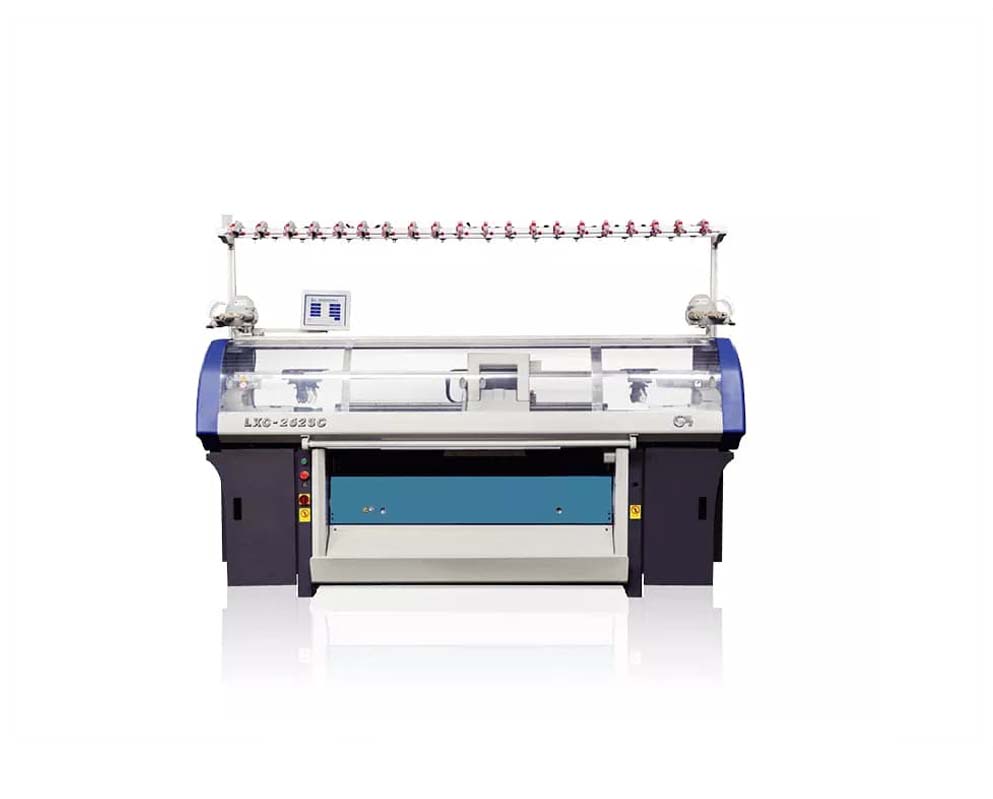

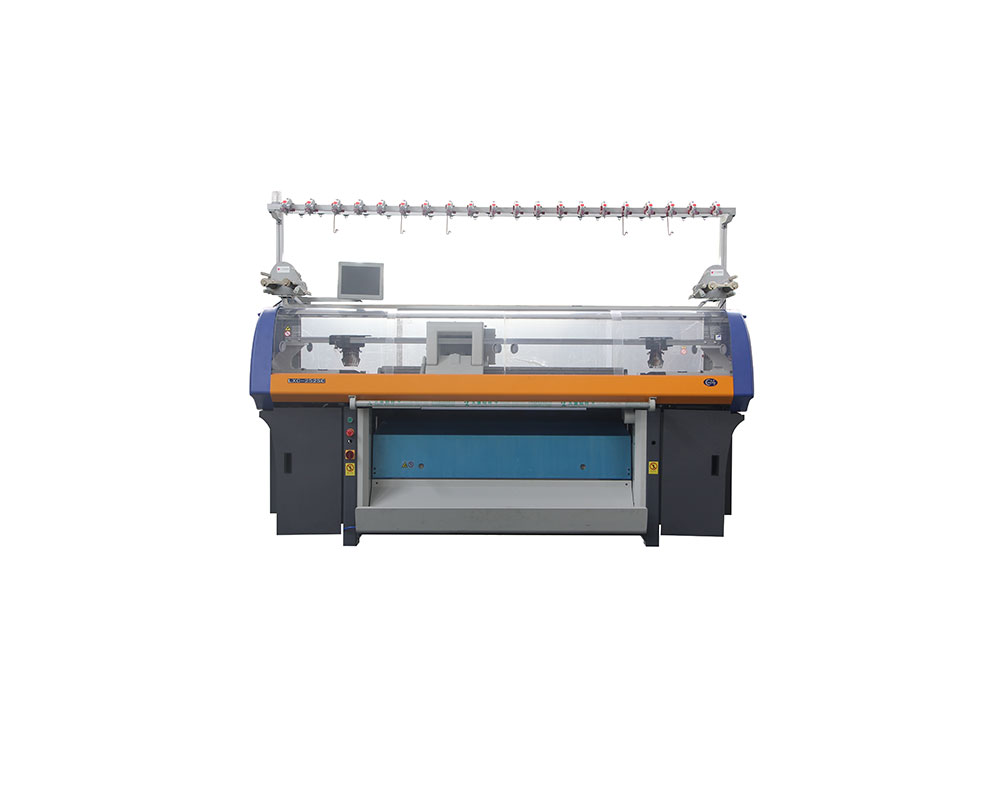

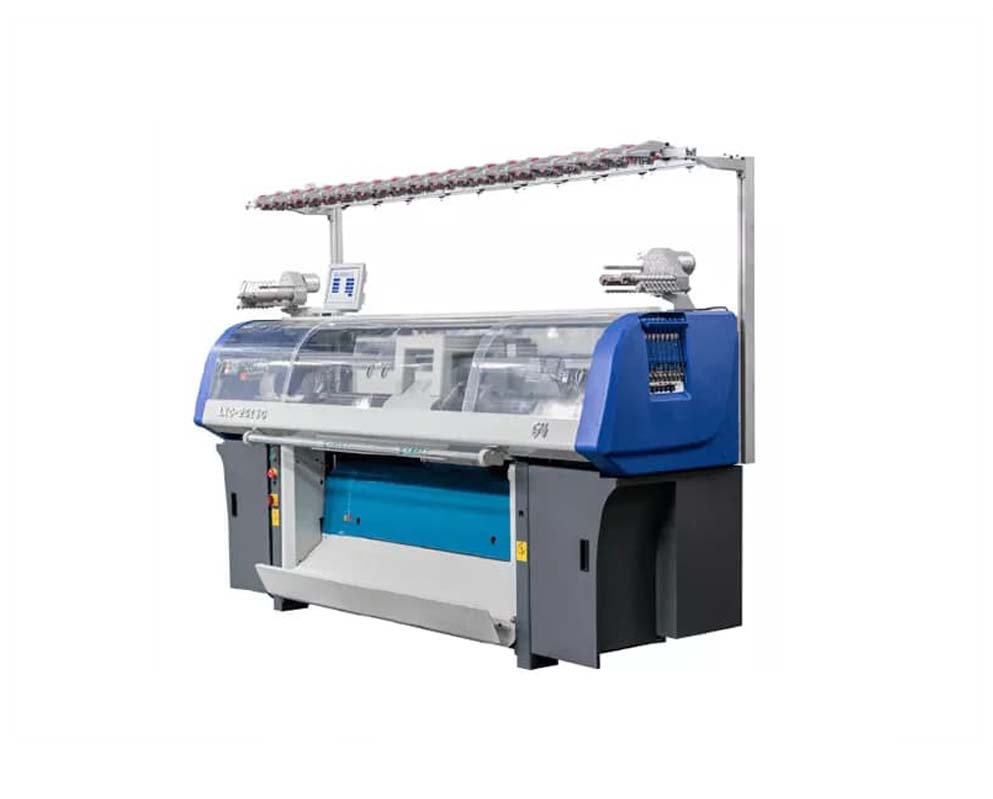

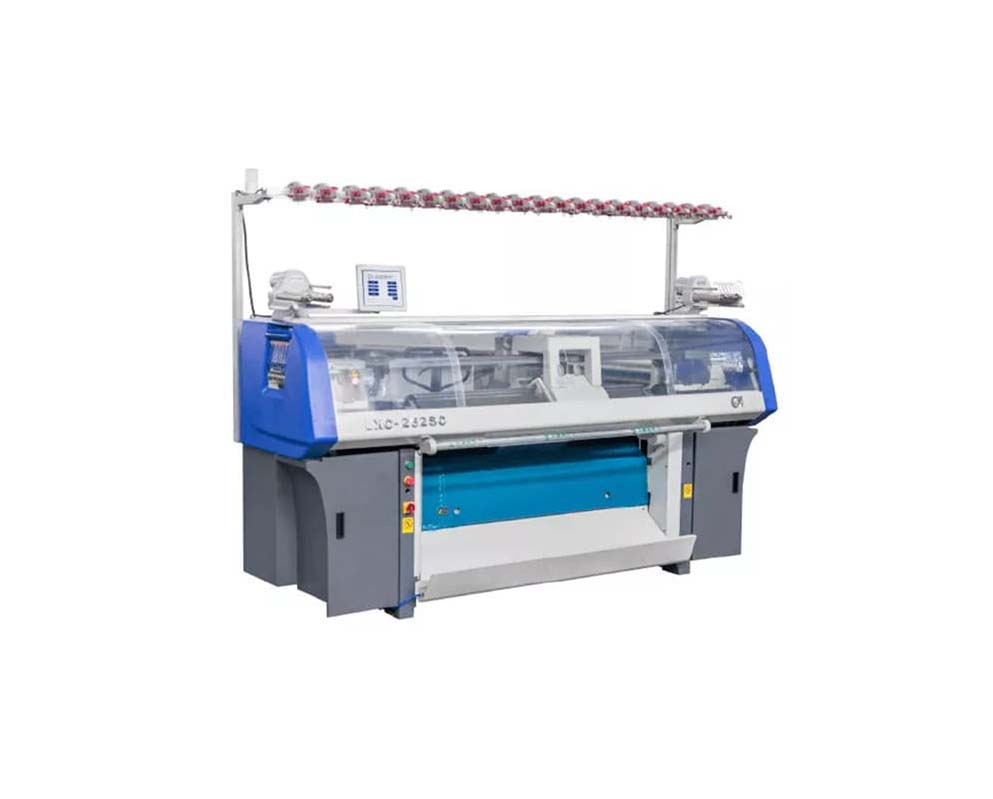

LXC Sweater Machine is used digital technology to achieve the patterns of transfer, tuck, pointel, intarsia, jacquard, apparent shape, hidden shape and other regular pattern knitting functions.
| Brand | LONGXING |
| Gauge | 3G, 3.5G, 5G, 7G, 12G, 14G, 16G, 18G; |
| Knitting Width | 52" WEIGHT: ABOUT 1000KG |
| Knitting Speed | Controlled by AC servo motor with 24 sections speed optional, max 1.6m/s; |
| Knitting System | Double carriages with single system, single carriage with double systems, double carriages with double systems; |
| Knitting Function | Knit, miss, tuck, transfer, pointelle, intarsia, jacquard, hide, or apparent shaping and other regular patterns. |
| High-speed Double Tables Technology | The scope of racing reached 6 inches and raises the efficiency of table running by 40%, easy to deal with the pattern of twisting and fair isle; |
| Dynamic Stitch | The skill is initiation in China and at the same level with similar machines internationally. Different tightness is allowed on the same line without problem of varying lengths while knitting. When group of rib, twisted flower and frong-back are knitted on the same line, they are allowed to loosen alone; |
| Technology of Stitch Motor Closed-loop Control | Intelligently controlling the working condition of stitch motor is phased with this technology, avoiding the problem of wrong tightness while knitting; |
| Rapid Gyration | With rapid gyration in one-needle period, the efficiency can be raised by 14% especially when knitting narrow weaving like sleeve or stitching; |
| Intelligent Traction Control | Provide kinds of traction; solve the problem that traction may be lacking on thick-needle machine; release traction to make stitch transfer more stable; |
| Picture Alarm | Alarm function with vivid images to make it easier; |
| Function of Intelligent Computer File | Create parameters like thickness,traction and speed with intelligent plate making program, save time for creating parameters on the machine; |
| Control System | 1, Screen: adopt 10.4 inches LCD touch screen and figure interface; 2, Adopt intelligent head box(CAN bus technology); |
| Power | Single-phase 220V/50HZ,1.5KW, adopt advanced CMOS technology enabling memorizing at the instant of power outages and restoring of knitting thereafter. |
