the premium model integrates various high and new technologies such as high-speed small carriage , dynamic density control function , fast return technology, two-way stitch decreasing and continuous knitting innovative technology. Combined with KDS knitting design and program making system, integrated with many software modules, each modules are in-depth integration,and sweater orders to production for customer . The comprehensive upper, middle and lower cleaning system (needle bed cleaning system, scissors cleaning device and cloth board cleaning system) provides reliable guarantee for the continuous and stable production of the machine.
Gauge | 3G / 3.5G / 5G / 7G / 8G / 9G / 10G / 12G / 14G / 16G / 18G / 7G multi-gauge / 14G multi-gauge |
Width | 52 inch(3G / 3.5G be 60inch) |
Carriage system | Single carriage-double system / three system |

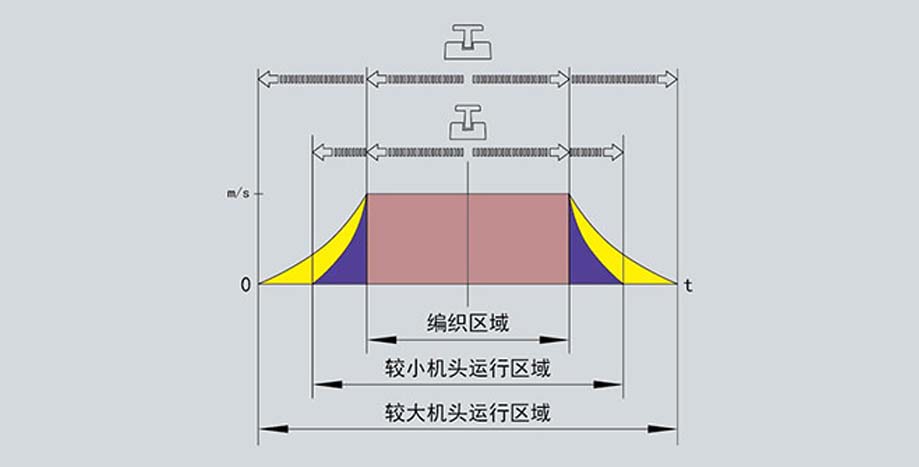

Running speed | Maximum speed 1.4m/s |
Racking | Driven by servo motor, maximum L&R racking distance up to 2 inch |
Needle selection system | 8 levels of selecting needle, Preliminary needle selection system |
Sinker | Driven by step motor，adjust according to different fabrics |
Auto-stop equipment | Yarn breakage,yarn knot,rewind,impact,piece finish,overload,Specific stop,program error etc |
Safety equipment | all covers can reduce noise and dust protenction，infraed stop sensing，emergency stop，out-off device |
Pull-down equipment | Top roller,comb,segmented regulation |
Needle pushing-up device | Independent device control,select needle faster |
Power consumption | Voltage:AC220V/380V frequency:50Hz/60Hz capacity:1.5KW(double system) 2.0KW(three system) |
MACHINE MODEL | BOUNDARY DIMENSION(mm) LENGTH×WIDTH×HEIGHT(A×B×C) |
LXC252 | 2730×900×1900 |
LXC352 | 3000×900×1900 |
LXC260 | 3100×1030×1900 |
