LED touch screen for displaying various knitting related parameters.
With a directly needle selection system, small carriage, makes the machine more effective.

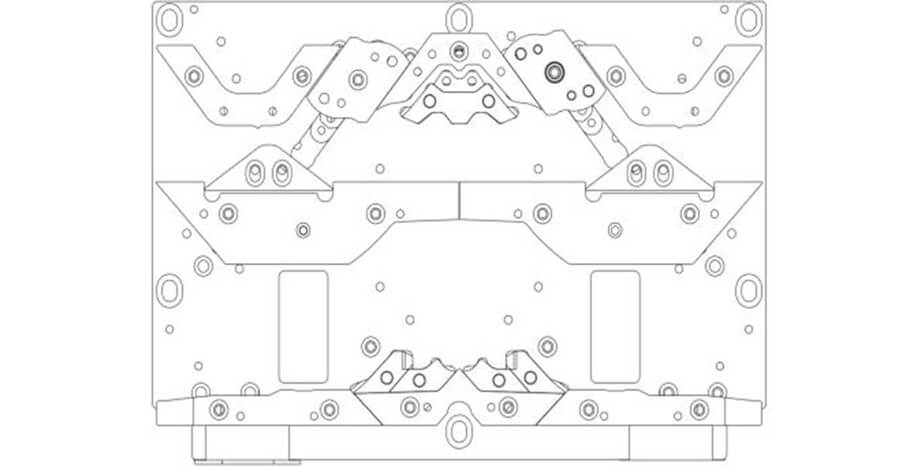

Fully motor controlled directly needle selection cam system with simple structure, compact size and light weight.
Precision needle and 8-segment needle selection system, and the needle plate is quenched by high frequency to meet the production requirements of high-quality collar fabrics.

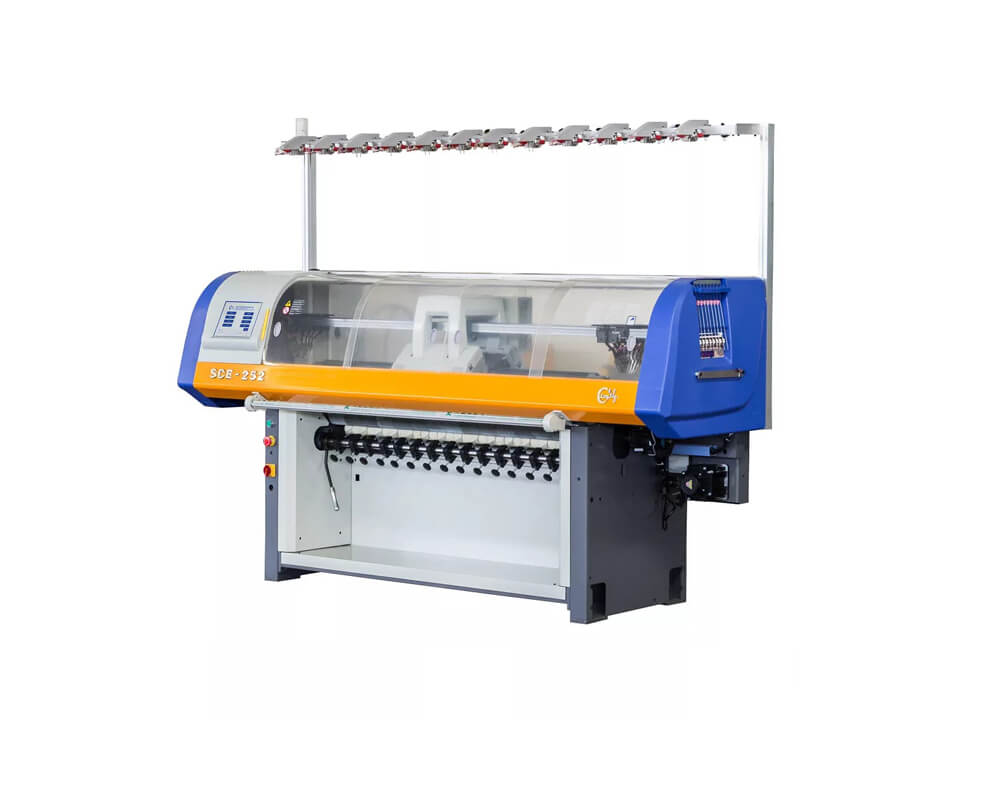

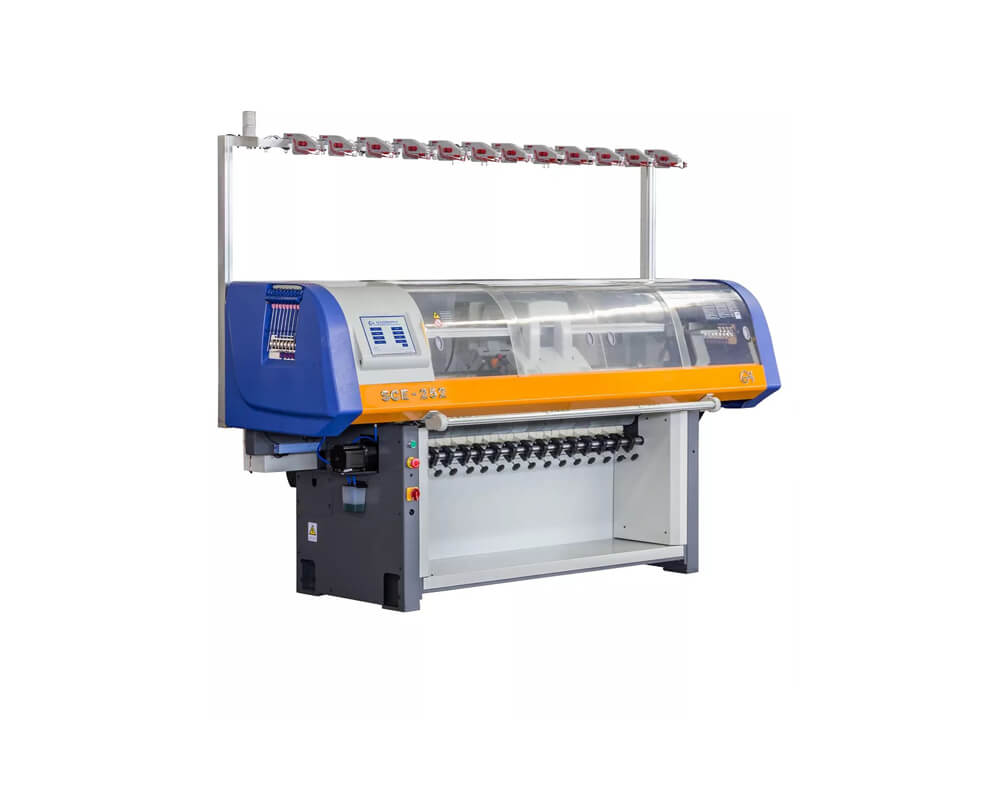

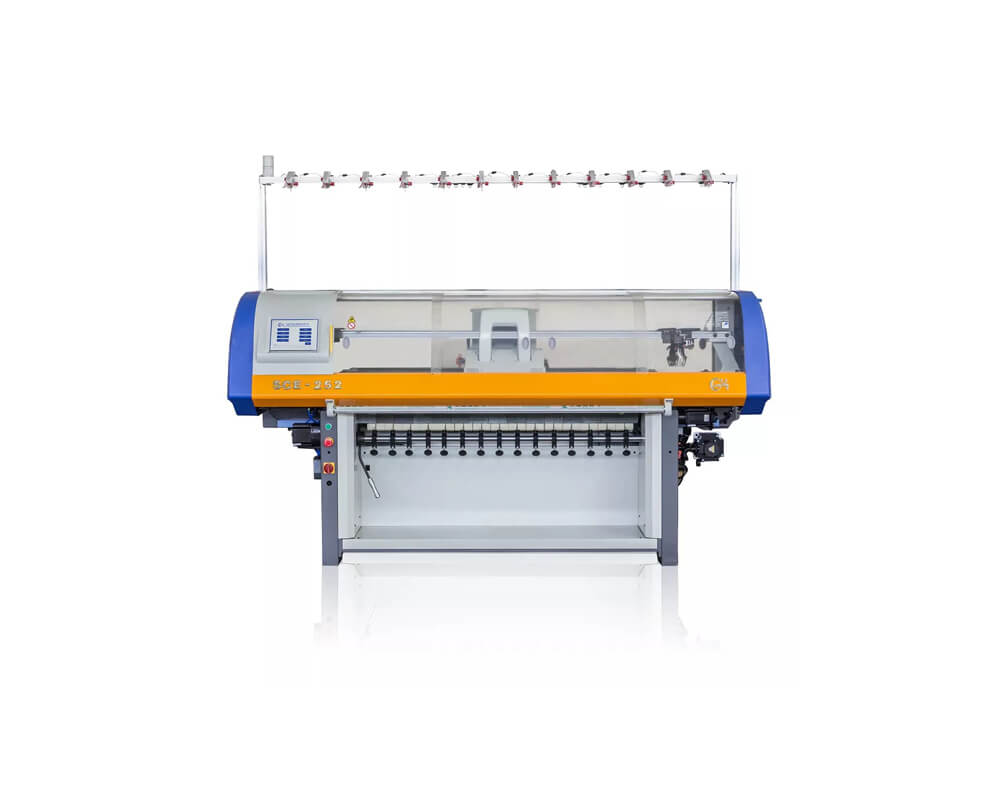

SCE131A/252 | |
Gauge | 7G/8G/9G/10G/12G/14G |
Width | 52 inches |
System | Single system/Double system |
Speed | Maximum speed 1.6m/s |
Racking | Driving by servo motor, 2 inches left and right |
Selection system | 8-segment needle selector, directly needle selection system |
Automatic parking device | Yarn break, yarn knot, rewinding, needle broken, pieces completed, overload, designated parking, program error, etc. |
safety devices | The whole machine covers the cover that reduces noise and dust, the front and rear cover infrared stop sensor, emergency stop, power cut-off device |
Drawing device | High-position roller, segment adjustment |
Machine size and weight | Volume: length X width X height 2435X815X1850 (mm) |
Power device | Voltage: AC220V/380V Frequency: 50Hz/60Hz Power: 1.0KW |
